Price: £595.00 £714.00 inc. VAT
A stand-alone pump unit for simple stationary and space-saving wall-mounted operation. A 3-point support on the back enables vertical or horizontal mounting.
EX DEMO EQUIPMENT
Fully tested and in full working condition.

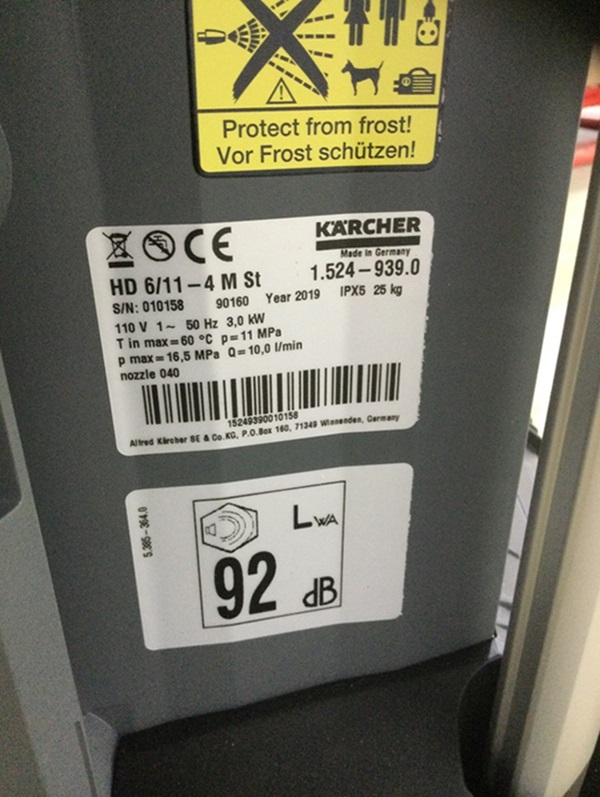

Serial Number - 10158
Buy NowDescription
The stand-alone pump unit out of the HD Middle class is the perfect solution for integrated high-pressure pumps e.g. stationary machine and production progress. A reliable high-pressure pump which is protected by a robust plastic chassis and not more.
The machine is intended for stationary use and can be mounted and operated both horizontally and vertically. A 3-point support on the back enables vertical or horizontal mounting. Access to the high-pressure pump and the electronic components is easy and therefore service-friendly – the pump itself is effectively protected from dirt in reclaim water by means of a large water fine filter.
Features
High-quality equipment
Automatic pressure relief for protecting the components extends their service life. Powerful, 2-pole, air-cooled electric motor. High-quality brass cylinder head.
Flexible operation
Designed for upright and horizontal operation.
Prepared for stationary operation
Simple and robust 3-point attachment for wall mounting on the rear of unit. Space-saving, compact design. Integrated storage options reduce the set-up times.
Easy servicing
- Easy access to the cylinder head when bottom of machine is opened.
- Fast access to electrical box through simple removal of cover.
- Large, easily accessible water fine filter for protecting the pump against dirt particles in water.
Increased energy efficiency
- Newly developed 3-piston axial pump with considerably reduced flow and pressure losses.
- 20 percent increase in cleaning performance and energy efficiency
Technical Information
| Power supply (Ph/V/Hz) | 1 / 100 / 50 |
|---|---|
| Flow Rate (l/h) | 600 |
| Water feed temperature (°C) | 60 |
| Operating pressure ( /MPa) | 110 / 11 |
| Max. Pressure (bar/MPa) | 165 / 16.5 |
| Power rating (kW) | 2.9 |
| Power cable (m) | 5 |
| Water feed | 3/4″ |
| Colour | anthracite |
| Weight (with accessories) (kg) | 25 |
| Weight incl. packaging (kg) | 27.5 |
| Dimensions (L × W × H) (mm) | 290 x 300 x 565 |
Delivery and Collection
Servicing And Maintenance
Kärcher are pleased to offer a comprehensive warranty policy for all refurbished units purchased through the Kärcher Used Equipment website.
The warranty consists of the following:
- If you detect any structural damage in the first seven days we will exchange the unit for another refurbished unit of the same series or a higher series.
- If there is a mechanical or electrical fault with the unit in the first 14 days we will exchange the unit for another unit of the same series or higher series.
- After the first 14 days the unit is delivered with a 6 month parts and labour warranty, held directly with Kärcher Used Equipment, for any part that has failed due to faulty or defective manufacture.
Warranty Cover
Should the machines / accessories purchased from us be resold this will also result in the warranty cover being invalidated.
Should you ship a product purchased from Kärcher Used Equipment outside the UK this will invalidate any warranty coverage provided.
Machines supplied as warranty replacements will be covered by the remainder of the original warranty cover.
